Specifications
FEATURES
Tuner
Memory Pre-sets: Preset Stations (FM: 24 / MW: 6 / LW: 6)
Memory: Auto
Memory
Seek Mode:
Local / DX Selection
RDS
RDS Functions: PI, PS, AF, TA, TP, PTY, NEWS, RADIO TEXT
DAB Tuner
DAB+ Tuner
Built-in
DAB+/DMB
Supported
DAB+ Slideshow
Service
DLS (Dynamic
Label Service)
DAB Service
Following
RDS Fallback (where
available)
Service Pre-set: 18 Pre-set Memory
Auto Ensemble/Service
Memory
Service Search
Function
PTY Search
Function
Alphabet
Search Function
Antenna Power
Supply Selection
BLUETOOTH®
Built-in
BLUETOOTH® Module
Wide Band
Speech Technology
HFP (Hands-Free
Profile) Compatible
Streaming Music: A2DP (Advanced Audio Distribution Profile) Compatible
Streaming Music Control: AVRCP (Audio / Video Remote Control Profile) Ver.1.5
Compatible
Advanced
BLUETOOTH® Technology
Connection: SSP (Simple Secure Pairing) Supported
Individual Profile Connection Hands Free Phone and Music Streaming
Phone Book:
Phone Book Synchronization
Speed Dial: 4 Pre-set Memory (per phone)
Multiple Phone Number Registration: 5 Phone Numbers can be stored for one name
Device Name
Display
Auto Answer
Call History Display: Outgoing Calls / Incoming Calls / Missed Calls
Redial
Function
Speech Volume Level Adjustment: Possible for Outgoing and Incoming Volume
DTMF (Touch-Tone)
Function
Signal
Strength Indicator
Battery Level
Indicator
Menu Language
Selection: 24 Languages
Firmware
Updatable
Made for
iPod® / iPhone®
Compatibility for iPod/iPhone: compatible with all models except 1st and 2nd
generation iPhone
Connection: KCU-461iV / KCU-471i Required
(Sold separately)
Music & Video Playback Compatible with KCU-461iV only
Available Selections: Playlist / Artist / Album /Song / Podcast / Genre /
Composer / Audiobook
Alphabet
Search
Artwork
Display
Direct Up / Down: Playlist / Artist / Album / Genre / Composer
M.I.X. (Shuffle) Play: Song, Albums, All
Repeat
Battery
Charging
Connectivity

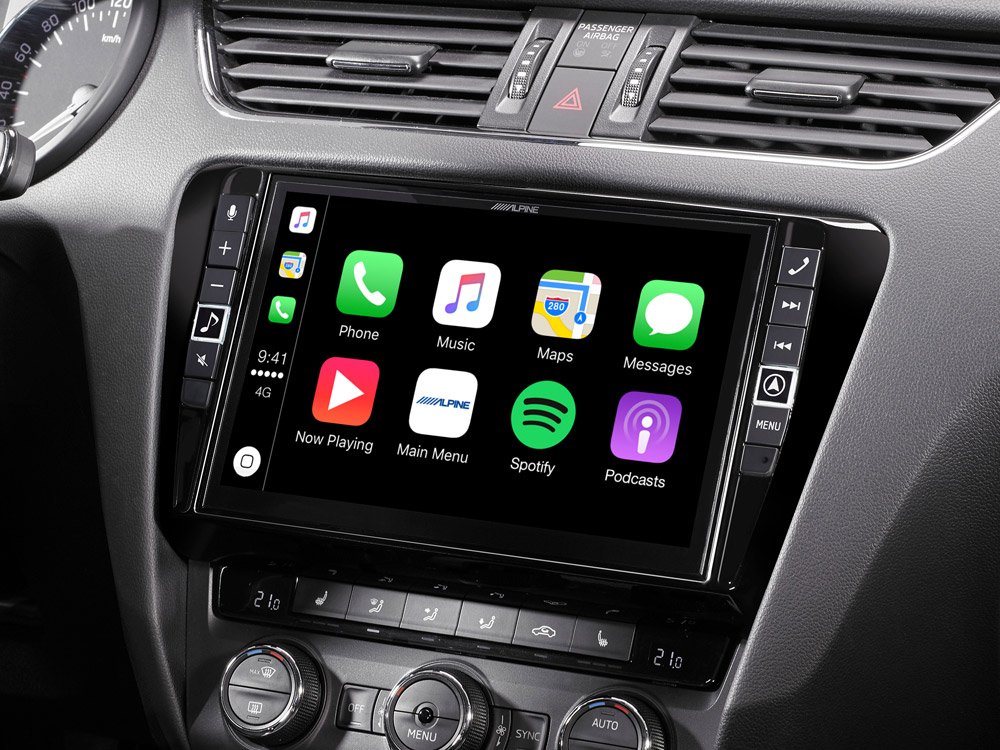

Works with Apple CarPlay (requires CarPlay enabled iPhone)
Works with Android Auto (Requires Android Auto enabled smartphone)
USB Media
Connection
USB Connection: includes a special cable that connects the USB / AUX port
USB Connection: USB Extension Cable Included
Music Playback:
MP4 compatible
File / Folder
Name Search
Tag Info
Search
Folder Up /
Down
M.I.X. Random
Play
Repeat
Sound
Tuning
Bass Engine SQ
Bass Engine™
Pro
Subwoofer
Level Adjustment
Subwoofer
Phase Select
4V High Voltage PreOut KTX-PRE1 Required
(Sold separately)
Equalizer: Flat, Pops, Rock, News, Jazz, Electrical Dance, Hip Hop, Easy
Listening, Country, Classical
Dual HD EQ (9-band Parametric Equalizer front/rear)
6 Channel
Digital Time Correction
Digital
Crossover Setting
Customized Sound Setting by Car Type
MediaXpander
HD
Application
Volume Level Setting
Sound Setting
Data Download
Easy, Step-by-Step Sound Customization
Alpine TuneIt
App ready
General
Power Output: 4 x 50 W High Power Amplifier
Advanced Power
IC
Display: 9?? Capacitive WVGA High Resolution Display
White LED
Backlighting System
50/50 Split Screen: Left / Right Position Changeable
Control Type:
Touch, Drag, Flick
My Favourites
Function
Automatic
Setting Change for 2 Users
High Grade
Audiophile Design
3
PreOuts (4V, Front / Rear / Subwoofer) KTX-PRE1 Required
(Sold separately)
AUX-In: 1 A/V AUX Input 3.5mm (RCA)
Steering Wheel
Remote Control Function
OEM Sub-display
Function
Remote Control
Ready
Navigation
Guidance Mix
Camera Connection & Built-in Controls for Multi-View Cameras
Camera Guide
Line Adjustment
Rear-view Camera Display Automatic Boot-up
Simple Mode & Info Mode Display Selection
Visual EQ
Live Contrast
Adjustment
Menu Language: 24 Languages (for AV / Bluetooth), 29 Languages (Navigation Menu
and Voice Guidance)
Clock
Auto Dimmer
Anti-theft
security code
Firmware
Updatable
Original Skoda Octavia 3 hands-free Microphone Connection
Power Antenna
Lead
Remote Turn-On
HDMI Input (Alpine Special HDMI connector required)
HDMI Selector Interface KCX-630HD Ready
Engine Start-Stop
unaffected
CAN Connection
Interface Included
Ready for optional DVD Player DVE-5300
Installation
Includes installation brackets, wiring harness and CAN bus interface for
complete installation.
SPECIFICATIONS
Screen
Screen Size: 9
inch Capacitive WVGA
LCD Type: Transparent Type TN LCD
Operation
System: TFT Active Matrix
Number of Picture Elements: 1,152,000 pixels (800 x 3 x 480)
Illumination
System: White LED Backlighting
Effective Number of Picture Elements: 99.99%
Colour System:
NTSC, PAL
Max Power
Output Ratings
Max Power
Output: 4 x 50 W
FM Tuner
Tuning Range:
87.5 - 108.0 MHz
Mono Usable Sensitivity: 8.1 dBf (0.7 µV / 75 ohms)
50dB Quieting Sensitivity: 12 dBf (1.1 µV / 75 ohms)
Alternate
Channel Selectivity: 80 dB
Signal-to-Noise Ratio: 65 dB
Stereo
Separation: 35 dB
Capture Ratio:
2 dB
MW Tuner
Tuning Range:
531 - 1,602 kHz
Usable Sensitivity (IEC Standard): 25.1 µV / 28 dBf
LW Tuner
Tuning Range:
153 - 281 kHz
Usable Sensitivity (IEC Standard): 31.6 µV / 30 dBf
USB
USB
Requirements: USB 2.0
Max. Power Consumption: 1,500 mA (CDP Support)
USB Class: Mass Storage Class, Play From Device
File System:
FAT 16/32
MP3 Decoding: MPEG-1/2 AUDIO Layer-3
WMA Decoding:
Windows Media™ Audio
AAC Decoding: ACC-LC format ??.m4a?? file
Flac Decoding
USB Video playback (AVI/MP4/MKV file with H.264 Video and MP3/AAC Audio)
Number of Channels: 2-Channel (Stereo)
Frequency Response: 5 - 20k Hz ±1 dB *Frequency Response may differ depending on
the encoder software/bit rate
Total Harmonic Distortion (at 1kHz): 0.008%
Dynamic
Range(at 1kHz): 95 dB
Signal-to-Noise Ratio: 100 dB
Channel
Separation (at 1kHz): 85 dB
GPS /
Glonass
GPS / Glonass compatible navigation antenna included
BLUETOOTH®
BLUETOOTH®
Version: Bluetooth V3.0+EDR
Output Power: +4 dBm Max. (Power class 2)
HFP: HFP (Hands Free Profile)
OPP (Object
Push Profile)
PBAP (Phone Book Access Profile)
HSP (Head Set
Profile)
A2DP: A2DP (Advanced Audio Distribution Profile)
AVRCP: AVRCP (Audio/Video Remote Control Profile)
SPP (Serial
Port Profile)
Sound
Tuning
Subwoofer
Level Adjustment: 0 to +15
Subwoofer
Phase Setting: 0° or 180°
BASS ENGINE SQ: 5Mode, Level 0 to +6
High Pass
Filter: 20 / 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 Hz
High Pass Filter (Slope): Off / -6 / -12 / -18 / -24 dB/oct.
High Pass Filter (Gain): -12 to 0 dB
Low Pass
Filter: 20 / 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 Hz
Low Pass Filter (Slope): Off / -6 / -12 / -18 / -24 dB/oct.
Low Pass Filter (Gain): -12 to 0 dB
Time Correction: 0.0 - 9.9ms (0.1ms step)
Dual HD EQ
Front + Rear
Parametric
Equalizer (Band 1): 20 - 100 Hz
Parametric
Equalizer (Band 2): 63 - 315 Hz
Parametric
Equalizer (Band 3): 125 - 500 Hz
Parametric
Equalizer (Band 4): 250 - 1k Hz
Parametric
Equalizer (Band 5): 500 - 2k Hz
Parametric Equalizer (Band 6): 1k - 4k Hz
Parametric Equalizer (Band 7): 2k - 7.2k Hz
Parametric Equalizer (Band 8): 5.8k - 12k Hz
Parametric Equalizer (Band 9): 9k - 20k Hz
Parametric
Equalizer (Gain): -14 to +14
Application Volume Level Setting: -14 to +14
HDMI
Section
Input Format
720p/480p/VGA
Output Format
480p
General
Power Requirement: 14.4 V. DC (11-16V allowable)
Pre Output Voltage (Before Clipping): 4 V / 10k ohms
Maximum
Mounting Angle: 30°
Dimensions

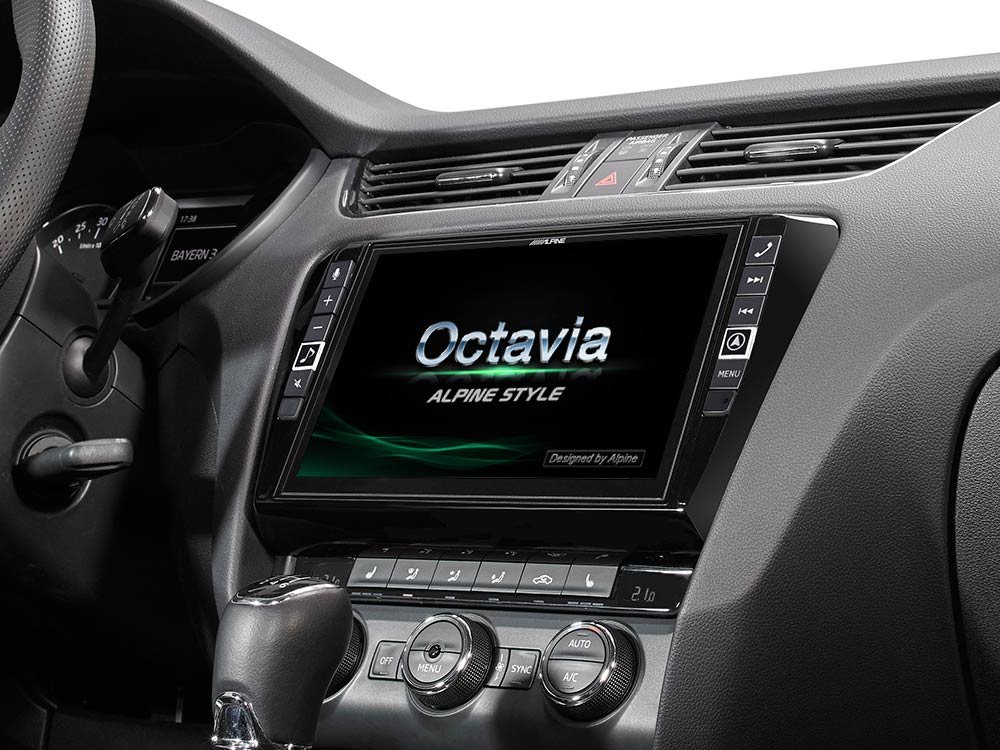

i902D-OC3: Fits for Skoda Octavia 3
Chassis Size (W x H x D) mm: 178 x 50 x 164 mm
